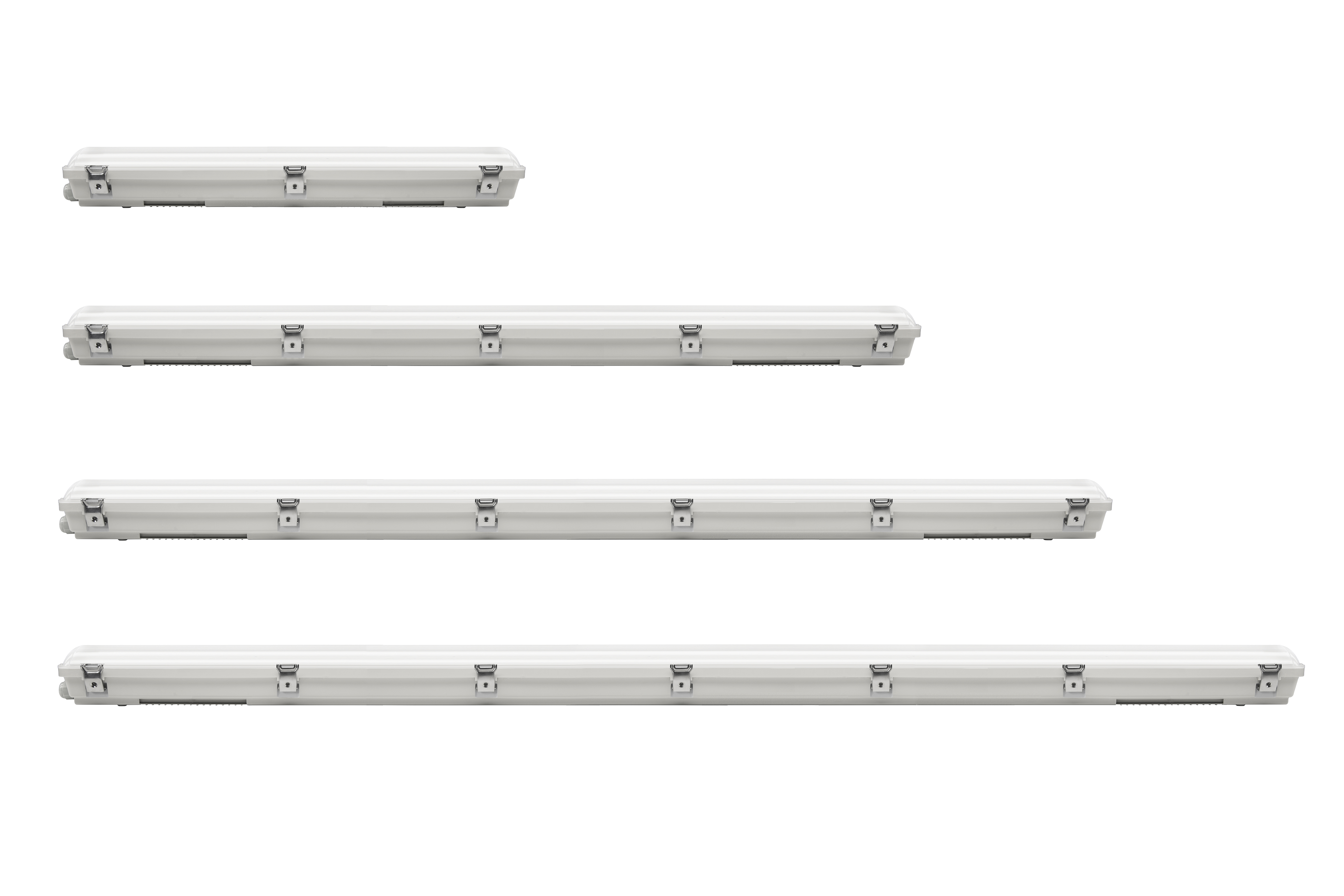

LMF G2 IP66 LED WATERPROOF LIGHT

PRODUCT DESCRIPTION
  • An excellent alternative for a new construction or for replacement.
  • To provide proper and satisfying lighting solutions in order to save energy and time for maintenance.
  • Light efficiency reaching up to 140lm/w, but still with soft light
  • Suitable to be used in various locations, such as gym,laboffice,library ,factory,cold storage,etc.
  • Can be equipped with high quality drivers and electronic components to get a 5-year warranty.


BENEFITS
  • UP to 64% energy savings compared with traditional lamps.
  • Cutting-edge L ED technology,easy to instal and maintain with a long lifetime.
  • Excellent optical performance and flexible installation.

FEATURES
  • Can be used to replace traditional waterproof luminaires.
  • The redesigned diffuser offers wide luminance.
  • Diffuser with special physical structure ensures visual comfort.
  • Ceiling-mounting brackets and suspension hooks are included.
  • BJB connectors are available for option to connect luminaires.
  • Optional external connector is available for easier installation(WEC).
  • A3-hour emergency kit is available for option.
Contact
  •

    Model No. LMF G2-10W-636 LMFG2-15W-636 LMFG2-17W-1176 LMFG2-34W-1176 LMFG2-24W-1506 LMFG2-42W-1506 LMFG2-55W-1506 LMFG2-35W-1806 LMFG2-70W-1806
    Input Voltage(V) 220-240VAC
    Frenquency(Hz) 50/60Hz
     Lumen Output 1400lm 2100lm 2400lm 4800lm 3400lm 6000lm 7700lm 4900lm 8000lm
    System Power(W) 10W 15W 17W 34W 24W 42W 55W 35W 70W
    CCT(K) 4000-6500K
    CRI >80
    Beam Angel(°) 120
    IP Rate IP66
    IK
    08
    GWT 850°C
    Life time 50000 hours
    Average ambient temp. 25°C
    Operating temp range. -35°C+40°C
    Operating Humidity(°C) 10%-90%
    Product Size(mm) 636*102*81mm 636*102*81mm 1176*102*81mm 1176*102*81mm 1506*102*81mm 1506*102*81mm 1506*102*81mm 1806*102*81mm 1806*102*81mm
    Carton Size(mm) 675*365*340mm 675*365*340mm 1215*335*280mm 1215*335*280mm 1540*345*280mm 1540*345*280mm 1540*345*280mm 1827*229*196mm 1827*229*196mm
    Qty/CTN(pcs) 12 12 9 9 6 6 6 4 4
